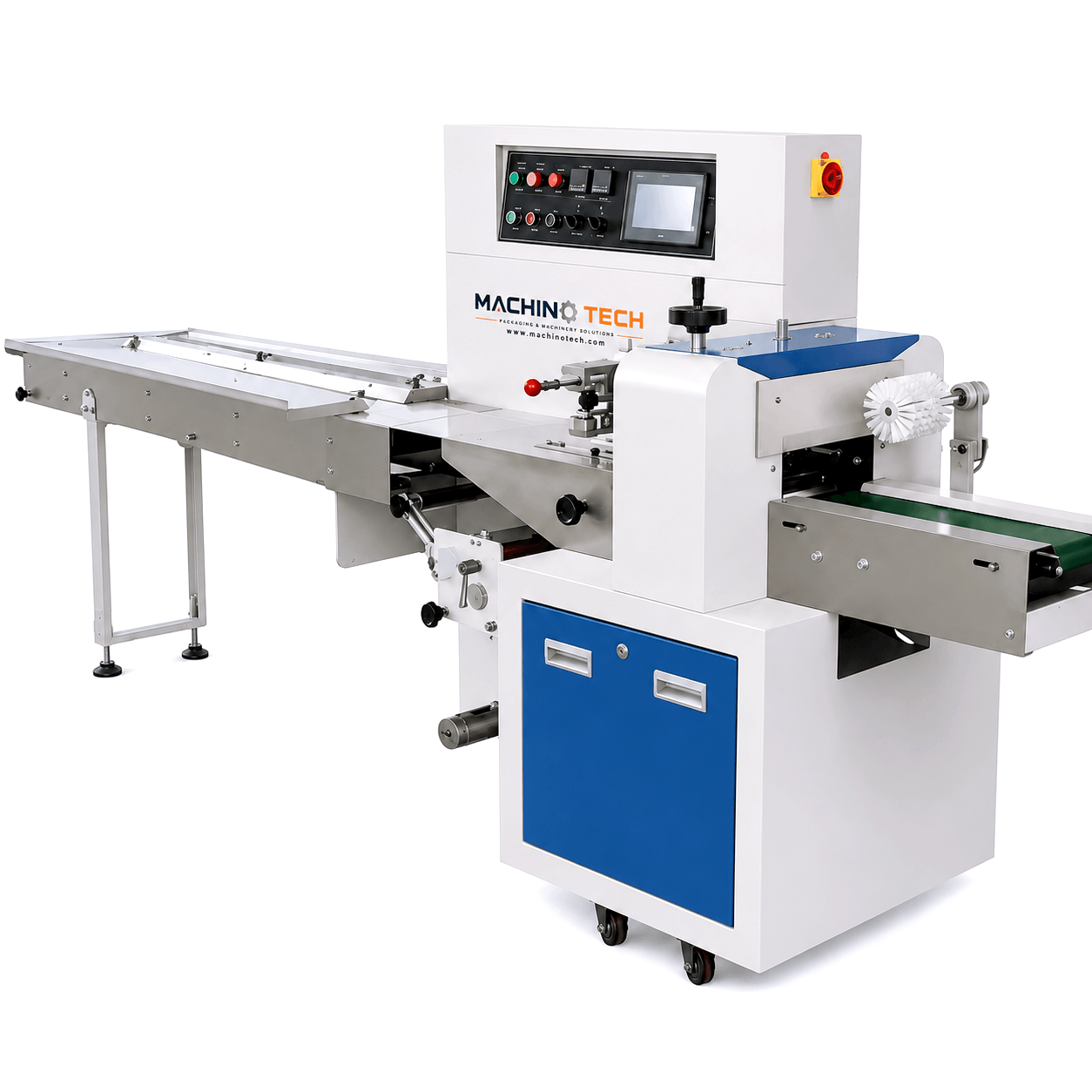

HORIZONTAL FLOW THROUGH WRAPPER MACHINE
Horizontal Flow Through wrapping machine Model MT-461
This Flow through wrapping machine Suitable for many different products. This packaging machine can be used for all kinds of products, such as bread, cake, candy, medicines or any item that requires a secure seal and maintains freshness. You can customize your film or foil to your exact product specification.
This machine can have a time or date stamp added or work together with a label printing machine that will automatically attach the label.
Product Description
Quotation:
| No. | Machine Name | Model | Unit Price |
|---|---|---|---|
| 1 | Horizontal Flow Through Wrapping Machine | MT-461 | — |
Remarks
| No. | Details |
|---|---|
| 1 | The above price is valid for one month. |
| 2 | Payment Terms: 50% T/T Deposit Upon Delivery |
| 3 | Delivery Time: 10 working days after receipt of the deposit. |
| 4 | 1-year warranty for machine parts from the delivery date. |
| 5 | Packing: Machine is Packed packed in wooden crates suitable for sea-worthy shipping. |
| 6 | Optional: Add a Date Coder. |
| 7 | Final Total Machine Price: — |
Machine Specification
| Specification | Details |
|---|---|
| Model | MT-461 (Back Pull Film) |
| Max. Film Width | 13.3″ |
| Bag Length Range | 3.5″ – 12.9″ |
| Bag Width Range | 1.18″ – 6.3″ |
| Max. Product Height | 2.5″ |
| Max. Film Roll Diameter | 12.5″ |
| Packing Speed | 40–230 bags/min or 10–25 meters/min |
| Power Supply | 220V, 50/60Hz, 2.8 kW |
| Machine Size | (L) 142″ × (W) 32″ × (H) 43.3″ |
| Machine Weight | 860 lbs |
Parameter
| Specification | Details |
|---|---|
| Model | MT-461 |
| Film Width | 13.3″ |
| Bag Length | 3.5″ – 12.9″ |
| Bag Width | 1.18″ – 6.3″ |
| Product Height | Up to 25.5″ |
KEY FEATURES & BENEFITS
Automatic Bag Length Detection
Dual servo motors with PLC control automatically detect and cut the bag length. No manual adjustment is required, making operation simple while saving time and packaging film.
Easy-to-Use Interface
The human-machine interface (HMI) enables quick and easy parameter setup. The system is user-friendly and requires minimal operator training.
Smart Fault Diagnosis
A built-in self-diagnostic system displays clear error messages, allowing operators to quickly identify and resolve issues, minimizing machine downtime.
High-Precision Mark Tracking
A high-sensitivity photoelectric sensor accurately tracks color marks. Digital input ensures precise sealing and cutting for consistent packaging quality.
Precise Temperature Control
Independent PID temperature control provides stable and accurate sealing performance, making the machine suitable for a wide variety of packaging materials.
Product Positioning Stop
Automatically positions the product at the desired location before stopping. This feature prevents knife sticking and reduces film waste.
Reliable & Low Maintenance
The machine features a simple and durable transmission system for reliable operation. Its low-maintenance design reduces downtime and operating costs.
Software-Based Control
All machine functions are managed through software, allowing easy parameter adjustments, future upgrades, and continuously improved performance.
Payment Information
50% deposit required to start production/order processing. Balance payable upon delivery.
Product Application
Pillow packaging machines are widely used in the packaging of medicine, daily necessities, food, hardware, fruits and vegetables and other industries.
Introducing the Flow Wrapping Machine: Packaging Made Easy
In the fast-paced world of manufacturing and packaging, efficiency and precision are crucial. To meet these demands, a revolutionary solution has emerged – the Flow Wrapping Machine. Designed to streamline the packaging process, this innovative machine offers a wide range of benefits for businesses in various industries.
The Flow Wrapping Machine is a versatile and reliable packaging solution that excels in wrapping products of different shapes and sizes. Whether you need to package confectionery, bakery items, pharmaceuticals, or consumer goods, this machine can handle it all with ease. It is perfect for wrapping products like candy bars, cookies, biscuits, chocolates, granola bars, soap bars, and more.
One of the key advantages of the Flow Wrapping Machine is its ability to provide hermetically sealed packages. Hermetic sealing ensures that the product inside remains fresh and protects it from external contaminants like moisture, dust, and odors. This not only extends the shelf life of the product but also ensures customer satisfaction and boosts brand reputation.
Another notable feature of this machine is its adaptability. It can be easily adjusted to accommodate various product sizes and packaging requirements. This flexibility makes it an ideal choice for businesses that deal with a wide range of products and frequently change packaging specifications. The machine allows for quick changeovers, reducing downtime and increasing overall productivity.
The advanced technology incorporated in the Flow Wrapping Machine guarantees precise and consistent packaging every time. With its automatic feeding and cutting system, the machine ensures that each package is perfectly sealed and trimmed, resulting in a professional finish. It also offers multiple customization options, such as adjustable bag lengths and sealing temperatures, allowing businesses to tailor the packaging to their exact needs.
Efficiency is a top priority in any manufacturing process, and the Flow Wrapping Machine excels in this aspect. With its high-speed capabilities, this machine can wrap a large number of products in a short amount of time. This significantly reduces labor costs and increases productivity, allowing businesses to meet high demands without compromising on quality.
Moreover, the Flow Wrapping Machine is designed with user-friendliness in mind. Its intuitive interface and easy-to-use controls make it simple to operate, even for those with minimal technical expertise. The machine is also equipped with sensors and safety mechanisms to ensure smooth operation and minimize the risk of accidents or product damage.
Not only does the Flow Wrapping Machine contribute to operational efficiency, but it also promotes sustainability. By utilizing minimal packaging material, this machine helps to reduce waste and lower packaging costs. Additionally, it offers the option to use biodegradable packaging materials, which aligns with environmental initiatives and appeals to eco-conscious consumers.
In conclusion, the Flow Wrapping Machine is a game-changer in the packaging industry. With its versatility, precision, efficiency, and sustainability features, this machine is a valuable asset for businesses of all sizes. As the demand for well-packaged products continues to rise, investing in a Flow Wrapping Machine is a strategic decision that will streamline operations, enhance product quality, and ultimately drive success for your business.
