PALLET WRAPPING MACHINE
Pallet Wrapping Machine MT1650F
Pallet Wrapping Machine is an advanced packaging equipment designed to securely wrap palletized goods with stretch film. It provides stable and consistent wrapping, ensuring product safety during storage and transportation. With adjustable speed and tension control, it improves packaging efficiency, reduces film waste, and is ideal for warehouses, logistics, and industrial applications.
Quotation ：
| Machine Name | Model | Quantity | Unit Price | Total Price |
| Pallet Wrapping Machine | MT1650F |
Additional Specifications (Film)
Standard Film Size: $500\text{mm (Width)} \times 25\text{mic (Thickness)}$
Weight: 15 kgs/roll
Price: USD 22.5/roll (Price based on 1 ton)
Terms & Remarks
| Category | Details |
| Validity | The above price is valid for one month. |
| Payment Terms | 50% deposit required to start production/order processing. Balance payable upon delivery. |
| Delivery Time | Standard model is in stock. If customization is needed, it takes about 10-15 working days. |
| Warranty & Service | 1-year guarantee for machine parts since delivery date and all-life service. |
| Packing | The goods are packaged in a wooden case or iron shelf suitable for sea-worthy shipping. |
Payment Information
50% deposit required to start production/order processing. Balance payable upon delivery.
Product introduction
T series of pallet wrapping machine used in container transportation and bulk, pallet packing of the goods
widely used in glass products, hardware tools, electronic appliances, papermaking, ceramics, chemical
industry, food, beverages, building materials, etc. To improve logistics efficiency, reduce the loss in the
process of transportation, has the advantages of dustproof, moisture, reduce the packaging cost. It is the ideal
choice of the upgrade the product packaging.
Feature advantage
Humanmachine interface control, easy to operate.
ACmotor,adjust tensile and film feeding speed by transducer control.
Thesafety film carriage door, easy to assemble the film, the machine can’t run when the door is open.
Keep safety during operation.
Durable using, our wrapping machines can be used for super 10 years which is approved by most of our
customers. Easy handling, we improve the machine according to 16 years experience to make it more
human friendly, safe and easy operation

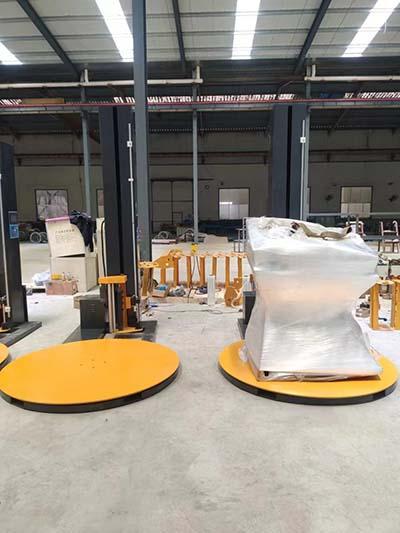

Customer feedback product details
MainTechnical Parameters
| Specification | Value |
|---|---|
| Turntable diameter | 1650 inches |
| Wrapping productivity | 20–45 pallets/H |
| Wrapping specification | L(500–1200) inches × W(500–1200) inches × H(500–2000) inches |
| Machine size | 2545 × 1650 × 2400 inches |
| HS CODE | 8422400090 |
| Standard wrapping height | 2000 inches |
| Max. turntable loading | 2000 kg |
| After packing size | 2800 × 1800 × 880 inches |
| Turntable height | 80 inches |
| Machine weight | 590 kg |
| Machine power | 1.55 KW |
| Supply voltage | 220V/50HZ, 1 Phase |
| Turntable speed | 3–12 rpm |
| Wrapping material | LLDPE Stretch Film |
| Thickness | 17–35 μm |
| Width | 500 inches (can be customized) |
| Inner center of film roll | 76.2 inches |
| Max. film roll diameter | 250 inches |
| Category | Details |
|---|---|
| Main Function | PLC programmable control, Human-Machine Interface (HMI), winding layers and frequency can be set |
| Control System | Photoelectric switch with automatic sensing of goods height |
| Control System | Reinforced winding function for special protection of specific parts |
| Control System | Over-top time can be set |
| Control System | Variable frequency speed adjustable from 3–12 rpm |
| Turntable Driving | Chain transmission with precise positioning |
| Turntable Driving | Turntable bottom equipped with forklift slots |
| Film Frame System | Power pre-stretch structure with up to 250% pre-stretching |
| Film Frame System | Double-chain structure, steady and reliable |
| Film Frame System | AC motor film drawing, inverter-adjustable tension |
| Film Frame System | Adjustable film frame lifting/down speed and film feeding speed |
| Film Frame System | Top and bottom coil numbers can be controlled separately |
| Human-Machine Interface Control | Digital parameter setting |
| Human-Machine Interface Control | Turntable rotation speed adjustable |
| Human-Machine Interface Control | Film frame up/down speed adjustable |
| Human-Machine Interface Control | Film frame output film speed adjustable (0–50) |
| Human-Machine Interface Control | Winding capacity and total capacity counting function |
| Human-Machine Interface Control | Counters can be reset to “0” |
| Human-Machine Interface Control | Can start packing from any position, not only bottom to top |
| Human-Machine Interface Control | Film frame can be moved up/down manually without photoelectric switch |
| Human-Machine Interface Control | Adjustable top and bottom packing layers |
| Human-Machine Interface Control | Adjustable overloading time |
| Human-Machine Interface Control | Important points can be strengthened |
| Human-Machine Interface Control | Automatic detection and stop function when film breaks |
Addition function(If you need ,we can add the function for you extra)
Ramp
($190)
It can easy to move and
put goods on the turntable
