PILLOW PACKING MACHINE
Pillow packing machine
Model:MT-350
Pillow Packing Machine is a high-speed automatic packaging machine designed for packing products in a pillow-shaped seal. It offers precise control, stable performance, and efficient operation with minimal manual effort. Suitable for food, pharmaceutical, and general products, it ensures strong sealing, neat packaging, and increased production efficiency for industrial use.
Quotation:
| No. | Machine Name | Model | Unit Price |
|---|---|---|---|
| 1 | Pillow Packing Machine | MT-350 | |
| 2 | Wooden Box Charge Price | ||
| 3 | Freight to China Address | ||
| 4 | Final Total Price | — |
Remarks
| No. | Details |
|---|---|
| 1 | The above price is valid for one month. |
| 2 | Payment Term: 50% T/T after confirmed order, 50% T/T after receiving picture and video before shipment. |
| 3 | Delivery Time: 10 working days after receiving prepayment. |
| 4 | 1-year warranty on machine parts from delivery date, with lifetime service support. |
| 5 | Packing: Goods are packed in wooden cases or iron shelves suitable for sea-worthy shipping. |
Main performance and structural features：
1. Dual servo motors, PLC control, bag length can be set and cut, no need to adjust
the unloading, one step is in place, saving time and film.
2. Human-machine interface, convenient and quick parameter setting.
3. Fault self-diagnosis function, fault display is clear at a glance.
4. High-sensitivity photoelectric eye color mark tracking, digital input of sealing
and cutting position, making the sealing and cutting position more accurate.
5. Independent PID control of temperature, better suitable for various packaging
materials.
6. Positioning stop function, no knife sticking, no waste of film.
7. The transmission system is simple, the work is more reliable, and the
maintenance is more convenient.
8. All controls are realized by software, which facilitates function adjustment and
technology upgrade and never lags behind.
Machine Specification
| Specification | Value |
|---|---|
| Model | MT-350 (back pull film) |
| Film width | |
| Bag Length | |
| Bag Width | |
| Product Height | |
| Film roll diameter | |
| Packing speed | 40–230 bags/min or 10–25 meters/min |
| Power | 220V, 50/60HZ, 2.8KW |
| Machine size | (L)3592 × (W)810 × (H)1100 inches |
| Machine weight | 450 KG |
Electrical configuration table
| No. | Component | Brand |
|---|---|---|
| 1 | PLC | Xinjie |
| 2 | Servo Motor | Xinjie |
| 3 | Touchscreen | Xinjie |
| 4 | Temperature Table | Yatai |
| 5 | Electric Eye | Yatai |
| 6 | Encoder | Changchun Rongde |
| 7 | Air Switch | Shangde |
| 8 | Proximity Switch | Omron |
| 9 | Switching Power Supply | Xinqi |
Details of machine
New exhaust device, sealed negative pressure, can ensure the package.
The sealing can also ensure the exhaust effect of product packaging.
Fruit (no need to punch).
The main frame is strong and durable, which
reduces the jitter stability of the host
The legs support the base to ensure a more accurate
feeding position and less jitter

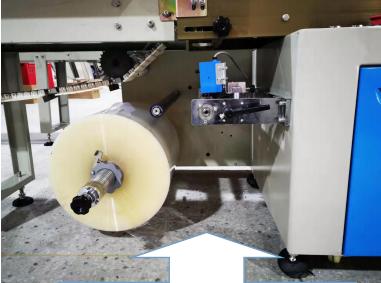

Due to the stable weight of the equipment,it can
support the largest diameter of the membrane
hanging shaft 450,reduce labor caused by film
change to reduce out put delay production impact
package loading speed.

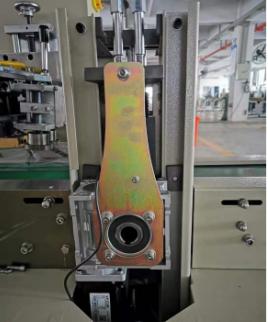

Servo anti-cutting, air defense, no product stop waiting, save packaging materials.
Anti-cutting function protects the cutter, improves efficiency, and saves time!
High sensitivity capacitive screen,program system
Integration doesn’t require a lot of buttons

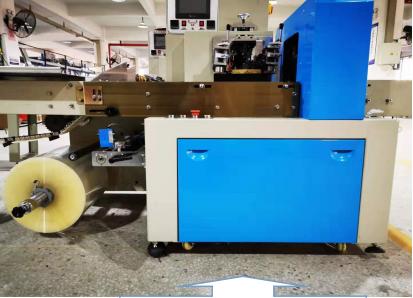

Real Photo
Packing and Delivery
