ROBOT PALLET WRAPPING MACHINE
Robot Pallet Wrapping Machine
Robot pallet wrapping machine uses stretch film to wrap and fix pallets for transportation or storage. Widely used in foreign trade and export. Cases with food, beverage, glass, ceramics, appliances, toys, housewares, chemicals, glass or any products, can be pallet wrapped. This is an efficient and cost-efficient way to secure and prevent damage to goods during loading and unloading or storage. Pallet wrapping will prevent dust, moisture and any other foreign or unwanted objects from coming in contact with your valuable merchandise.
| Machine Name | Model | Quantity | Unit Price | Total Price |
|---|---|---|---|---|
| Robot Wrapping Machine | MT-711 | 1 Set | ||
| Scale | 1 |
Product Description
Robot pallet wrapping machine uses stretch film to wrap and fix pallets for transportation or storage. Widely used in foreign trade and export. Cases with food, beverage, glass, ceramics, appliances, toys, housewares, chemicals, glass or any products, can be pallet wrapped. This is an efficient and cost-efficient way to secure and prevent damage to goods during loading and unloading or storage. Pallet wrapping will prevent dust, moisture and any other foreign or unwanted objects from coming in contact with your valuable merchandise.
Product Feature
- Automatic walking pre-stretch wrapping operation, it can work continuously for 8 hours.
- The control system is controlled by the PLC system to drive the motor to control the movement of the mechanical transmission mechanism to achieve stepless speed regulation. The system is stable and reliable, and the equipment is easy to use and maintain.
- It can automatically detect the height of the outer packaging, the number of equipment packaging, etc., can be preset to different packaging modes to meet the different packaging requirements of different types of packaging.
- Film-drawing mechanism: mechanical pre-stretch type (film pre-stretch ratio up to 1:2.5~3).
Robot Pallet Wrapping Machine Specification
| Specification | Value |
| Size of the packing cargo | 23.6″ 23.6″ |
| Min pallet size: | (L)24inches*(W)24 inches |
| Max pallet size: | no limited |
| Max packing height: | (H)95 inches” |
| Max packing weight: | no limited |
| Machine Specification | |
| Control system: | PLC |
| Max moving speed: | 230 per minute |
| Charge power: | 1PH AC220V, 50/60Hz, 10A |
| Specification | Value |
| Built-in battery | Built-in charger It can work for 8 hours when fully charged |
| Battery capacity: | (12V) 2pcs |
| Required charge time: | 8~10 hours |
| Rated working time: | 8 hours |
| Machine size | (L)60inches(W)48(H)101inches~~ |
| Air pressure: | 0.4-0.6Mpa (film cutting mechanism) |
| Power supply voltage: | 1PH 220VAC,50Hz |
| Power: | 0.95kw (Rotating motor 0.4kw /Up/down motor 0.35kw / Pre-stretch motor 0.2kw) |
| Photoelectric sensors | Yes |
| Number of wraps: | 0-9 laps |
| Machine weight: | 793 LBS. |
| Stretch Film detail | |
| Film carriage type | power stretch |
| pre-stretch rate | 250%-300% |
| FILM external diameter (D): | ⌀ 9.8 inches |
| Internal diameter (d): | ⌀ 3 inches |
| Film roll height (h): | 20 inches |
| Film thickness: | 20 -25µm |
Payment Information
50% deposit required to start production/order processing. Balance payable upon delivery.
Robot Pallet Wrapper Advantages
● Robot pallet wrapping machine adopts mobile power supply and can work continuously for 8 hours.
● Photoelectric detection, the tray height can reach 2.4m.
● The rotation speed is adjustable, and the reset is accurate after the package. The up and down speed of the mold base is adjustable.
● There is an emergency switch in front of the machine to avoid hitting the wrapping paper.
● The number of winding turns can be set. Bottom: 1-9 turns are adjustable; Up: 1-9 turns are adjustable.
● Holds the stretch film roll and controls the tension and stretch of the film.
● Touch screen or control panel for setting and adjusting wrapping cycles, speed, and film tension.
● Programmable Logic Controller (PLC) For precise control of wrapping parameters.
● Can handle different pallet dimensions and load heights.
● Space-saving design for easy storage and operation in confined spaces.

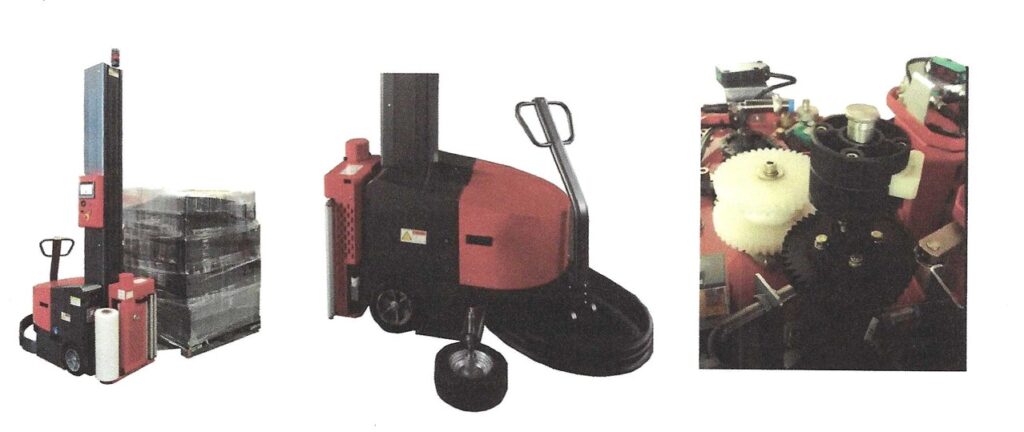

Robot Pallet Stretch Wrapper Details
Robotic Pallet Wrapping Machine Application
Robot pallet wrapping machines are widely used in glass products, hardware tools, electrical appliances, papermaking, ceramics, chemicals, food, beverages, building materials, etc.
● Warehousing and Distribution Centers
● Logistics and Transportation
● Retail and Wholesale
● Food and Beverage Industry
● Pharmaceuticals and Healthcare
● Printing and Publishing
